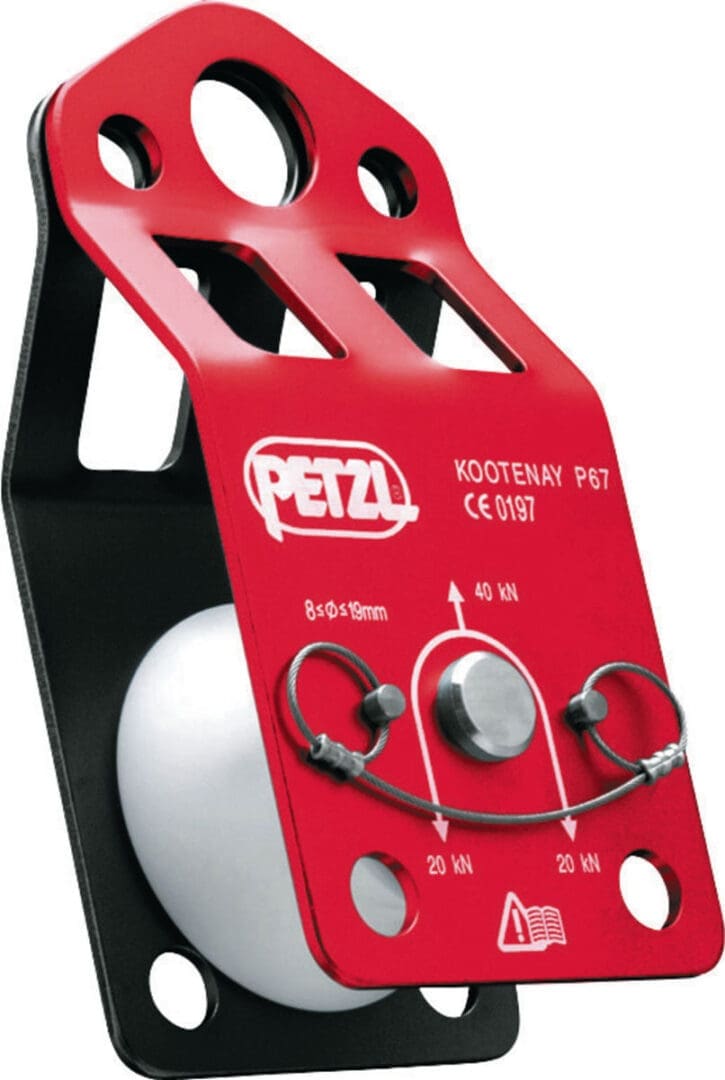

KOOTENAY

Knot-passing pulley

KOOTENAY is a knot-passing pulley that allows passage of joining knots. The large diameter sheave mounted on sealed ball bearings ensures excellent efficiency.

Detailed description

-High clearance rope channel allows passage of joining knots (long raise or Tyrolean traverse on two ropes).
-Large diameter sheave mounted on sealed ball bearings for excellent efficiency.
-Locking pins on the sheave allow pulley to be used as an anchor.

Specifications

-Rope compatibility: 8 to 19 mm
-Sheave diameter: 76 mm
-Ball bearings: yes
-Maximum working load: 5 kN x 2 = 10 kN
-Weight: 1390 g
-Height: 26 cm
-Certification(s): CE EN 12278, UKCA, XF 404: FZL-H-Q 9.5/16
