Larkin Frame

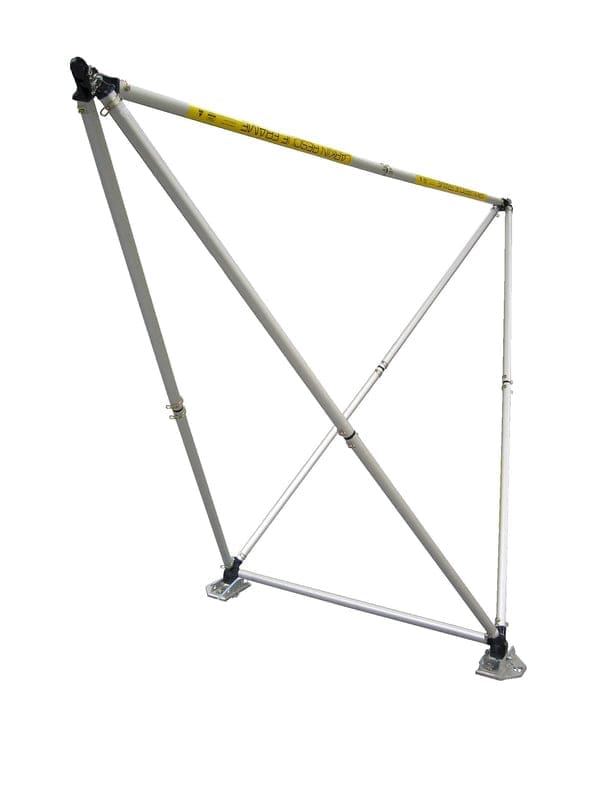

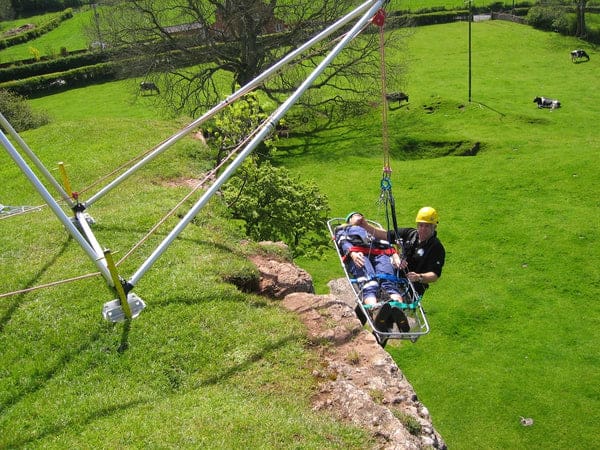

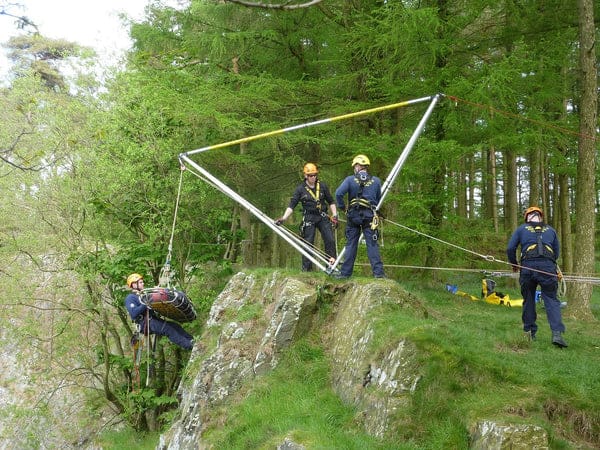

Designed to provide an elevated, tiltable redirection point, the LARKIN RESCUE FRAME can be used very close to an edge because the rescue load can, in full-size configuration, be landed within the tilted frame. Unlike a conventional tripod, the LARKIN RESCUE FRAME does not need to span the void: it sits on one side and reaches out to provide a redirect high above and well away from the edge.

-Frame is constructed of high tenacity aluminium alloy for the best balance between strength and weight
-Full size frame has an operational reach from the tilt point of 2.5 metres
-Half size frame has an operational reach from the tilt point of 1.2 metres
-Safe working load of 400kg
-Weight 43.5kg
-Manufacture of the LARKIN RESCUE FRAME is certified to AS/NZS ISO 9001:2008 quality standards
